181232
Compact entry model
Voltage
18.3 V
Capacity
64 Ah
Energy
1200 Wh
Density
279 Wh/L
L: 88 mmW: 188 mmH: 260 mm
18.3 V platform64–192 Ah1200–3500 Wh
Battery family
18 Volt product line
A scalable family of 18.3V battery modules built on a common 5S architecture. Every model maintains the same width and height while length, capacity, and total energy scale with the parallel cell count.
Shared voltage
18.3V
Configurations
5S2P–5S6P
Family capacity range
64–192 Ah
Family energy range
1200–3500 Wh

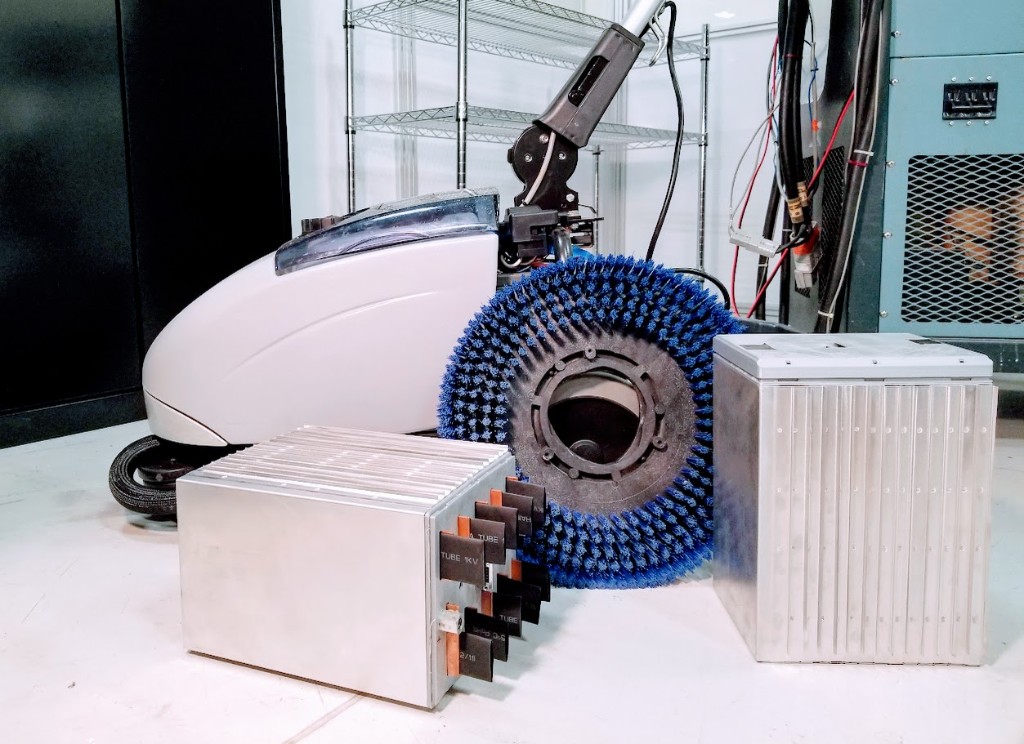

Modules in the lab — real-world scale
Finned aluminum enclosures with high-current buswork, shown alongside industrial equipment so pack size, service access, and deployment context stay tangible during development.
Quick model comparison
5S2P
181832
Balanced mid-compact model
Voltage
18.3 V
Capacity
96 Ah
Energy
1800 Wh
Density
288 Wh/L
L: 128 mmW: 188 mmH: 260 mm
182332
Featured standard-capacity model
Voltage
18.3 V
Capacity
128 Ah
Energy
2300 Wh
Density
280 Wh/L
L: 168 mmW: 188 mmH: 260 mm
182932
Extended runtime model
Voltage
18.3 V
Capacity
160 Ah
Energy
2900 Wh
Density
285 Wh/L
L: 208 mmW: 188 mmH: 260 mm
183532
Highest capacity family model
Voltage
18.3 V
Capacity
192 Ah
Energy
3500 Wh
Density
289 Wh/L
L: 248 mmW: 188 mmH: 260 mm
